CVR-X2-SFP10G=
X2 to SFP+ Adaptor module
Produits apparentés
-
Catalyst 3750-X, Switch 3750-X
Switch cisco WS-C3750X-24T-L
Manufacturer :Cisco Systems, Inc
Manufacturer Part Number :WS-C3750X-24T-L
Product Type: Switch – 24 ports – Managed – stackable
Form Factor Fixed, Rack Mountable 1U, Stackable/Clustering
Switch Port density – Uplinks 24 x 10/100/1000 Ethernet Ports Ethernet Ports Ethernet Ports Ethernet Ports
Performance Switching capacity : 160 Gbps
Forwarding performance : 65.5 Mpps
Capacity Virtual interfaces (VLANs) : 1005
Jumbo Frame Support :9216
Max Number of Stacks :9
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
DRAM Memory: 256 MB
Flash Memory :128 MB Flash
LED Status Lights Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Interfaces :24 x 10Base-T/100Base-TX/1000Base-T – RJ-45
USB : 1 x 4 PIN USB Type A
1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Network stack device : 2 x
Expansion Slot(s) :1 (total) / 1 (free) x Expansion Slot
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Width: 44.5 cm
Depth :46 cm
Height:4.5 cm
Weight :7.1 kg
Rack Mounting Kit :Optional
MTBF: 189,704 hour(s)SKU: n/a -
-
-
Catalyst 3750-X, Switch 3750-X

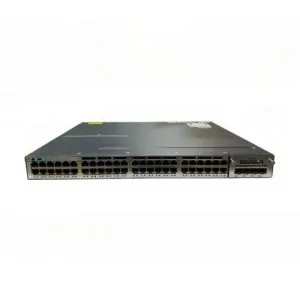

Switch cisco WS-C3750X-48P-S
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3750X-48P-S
Product Type Managed, Stackable 48 ports L3 Switch
Form Factor Fixed, Rack Mountable 1U, Stackable/Clustering
Switch Port density – Uplinks 48 x 10/100/1000 Ethernet Ports
Power Over Ethernet (PoE) Yes
Max Number of Stacks 9
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
DRAM Memory 256 MB
Flash Memory 128 MB Flash
LED Status Lights Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Interfaces 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 PIN USB Type A
1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Network stack device : 2 x
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Width :44.5 cm
Depth: 46 cm
Height: 4.5 cm
Weight :7.5 kg
Rack Mounting Kit Optional
MTBF 139,913 hour(s)SKU: n/a
