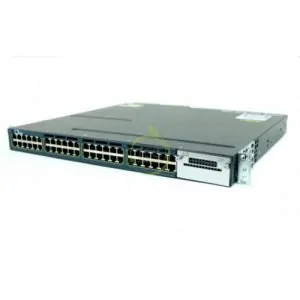

Switch cisco WS-C3560X-48T-E
Détail du produit:Cisco Switch 3560-X Series WS-C3560X-48T-E Catalyst 3560X 48 Port Data IP Services
Produits apparentés
-
Catalyst 2960, Catalyst 2960-C, Catalyst 2960-C Accessoire, Catalyst 2960-C Switch, Catalyst 2960-S, Catalyst 2960-X, Catalyst 2960+, Catalyst 3560-C, Catalyst 3560-X, Catalyst 3750-X, Catalyst C3850, Switch 3750-X, Cisco
C3K-PWR-750WAC=
Catalyst 2960, Catalyst 2960-C, Catalyst 2960-C Accessoire, Catalyst 2960-C Switch, Catalyst 2960-S, Catalyst 2960-X, Catalyst 2960+, Catalyst 3560-C, Catalyst 3560-X, Catalyst 3750-X, Catalyst C3850, Switch 3750-X, CiscoC3K-PWR-750WAC=
C3K-PWR-750WAC=
Catalyst 3750-E/3560-E/RPS 2300 750WAC power supply spareSKU: n/a -
Catalyst 3560-X
Switch cisco WS-C3560X-48P-L
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3560X-48P-L
Product Type :Switch – 48 ports – Managed
Form Factor Rack mountable – 1U
Switch Ports :48 x 10/100/1000 Ethernet Ports Ethernet Ports
Power Over Ethernet (PoE) Yes
Performance Switching capacity : 160 Gbps
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
DRAM Memory: 256 MB
Flash Memory: 128 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
terfaces 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 PIN USB Type A
1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slots Total (Free) 1 ( 1 ) x Expansion Slot
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Voltage Required :AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Width :44.5 cm
Depth :46 cm
Height :4.5 cm
Weight: 7.4 kg
Rack Mounting Kit: Optional
MTBF :149,594 hour(s)
Software Included :Cisco IOS LAN BaseSKU: n/a -
Catalyst 3560-X
Switch cisco WS-C3560X-48P-S
Manufacturer :Cisco Systems, Inc
Manufacturer Part Number: WS-C3560X-48P-S
Product Type :Switch – 48 ports – L3 – Managed
Form Factor Rack mountable – 1U
Switch Ports :48 x 10/100/1000 Ethernet Ports Ethernet Ports
Power Over Ethernet (PoE) Yes
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng
DRAM Memory :256 MB
Flash Memory :128 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Interfaces 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 PIN USB Type A
1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Width: 44.5 cm
Depth: 46 cm
Height :4.5 cm
Weight: 7.4 kg
Rack Mounting Kit Optional
MTBF 149,594 hour(s)SKU: n/a -
Catalyst 2960, Catalyst 2960-C, Catalyst 2960-C Accessoire, Catalyst 2960-C Switch, Catalyst 2960-S, Catalyst 2960-X, Catalyst 2960+, Catalyst 3560-C, Catalyst 3560-X, Catalyst 3750-X, Catalyst C3850, Switch 3750-X, Cisco
C3KX-NM-10GT
Catalyst 2960, Catalyst 2960-C, Catalyst 2960-C Accessoire, Catalyst 2960-C Switch, Catalyst 2960-S, Catalyst 2960-X, Catalyst 2960+, Catalyst 3560-C, Catalyst 3560-X, Catalyst 3750-X, Catalyst C3850, Switch 3750-X, CiscoC3KX-NM-10GT
C3KX-NM-10GT
Catalyst 3K-X 10G-T Network Module
Type d’interface Ethernet: 10 Gigabit Ethernet,Gigabit Ethernet
LAN Ethernet : taux de transfert des données: 1000,10000 Mbit/s
Standards réseau: IEEE 802.3ab,IEEE 802.3an
Nombre de port ethernet LAN (RJ-45): 2SKU: n/a -
Catalyst 3560-X
Switch cisco WS-C3560X-48T-S
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number WS-C3560X-48T-S
Product Type :Switch – 48 ports – L3 – Managed
Form Factor Rack mountable – 1U
Switch Ports 48 x 10/100/1000 Ethernet Ports Ethernet Ports
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
DRAM Memory: 256 MB
Flash Memory :128 MB Flash
Status Indicators :Port status, link activity, port transmission speed, port duplex mode, power, systemnterface :s48 x 10Base-T/100Base-TX/1000Base-T – RJ-45
USB : 1 x 4 PIN USB Type A
1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Width :44.5 cm
Depth :46 cm
Height :4.5 cm
Weight :7.3 kg
Rack Mounting: Kit Optional
MTBF :186,778 hour(s)SKU: n/a
