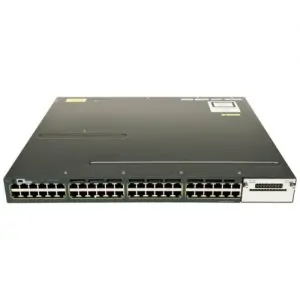

WS-C3560X-48U-L

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number :WS-C3560X-48T-L
Product Type :Switch – 48 ports – Managed
Form Factor :Rack mountable – 1U
Switch Ports 48 x 10/100/1000 Ethernet Ports Ethernet Ports
Performance Switching capacity : 160 Gbps
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
DRAM Memory: 256 MB
Flash Memory: 128 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
nterfaces 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45
USB : 1 x 4 PIN USB Type A
USB : 1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy: Optional
Power Redundancy :Scheme 1+1 (with optional power supply)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Width: 44.5 cm
Depth :46 cm
Height: 4.5 cm
Weight: 7.3 kg
Rack Mounting Kit Optional
MTBF: 186,778 hour(s)

WS-C3560X-24U-E

Catalyst 3560X 24 Port UPOE IP Service

24 x 10/100/1000 (UPOE)

64 MB

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3560X-24P-S
Product Type: Switch – 24 ports – L3 – Managed
Form Factor Rack mountable – 1U
Switch Ports :24 x 10/100/1000 Ethernet Ports Ethernet Ports
Power Over Ethernet (PoE) Yes
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
DRAM Memory 256 MB
Flash Memory 128 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 PIN USB Type A
1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Width: 44.5 cm
Depth :46 cm
Height: 4.5 cm
Weight: 7.1 kg
Rack Mounting :Kit Optional
MTBF :181,370 hour(s)
